- GUTZWILLER supplies vibrating plates with 2 or 3 pads for compacting:
- Fine and thick layers.
- Granular material.
- Mixed soils.
- Paving stones.
- Cambered, flat and banked track.
- Stabilised soil.
- Construction of sports pitches.

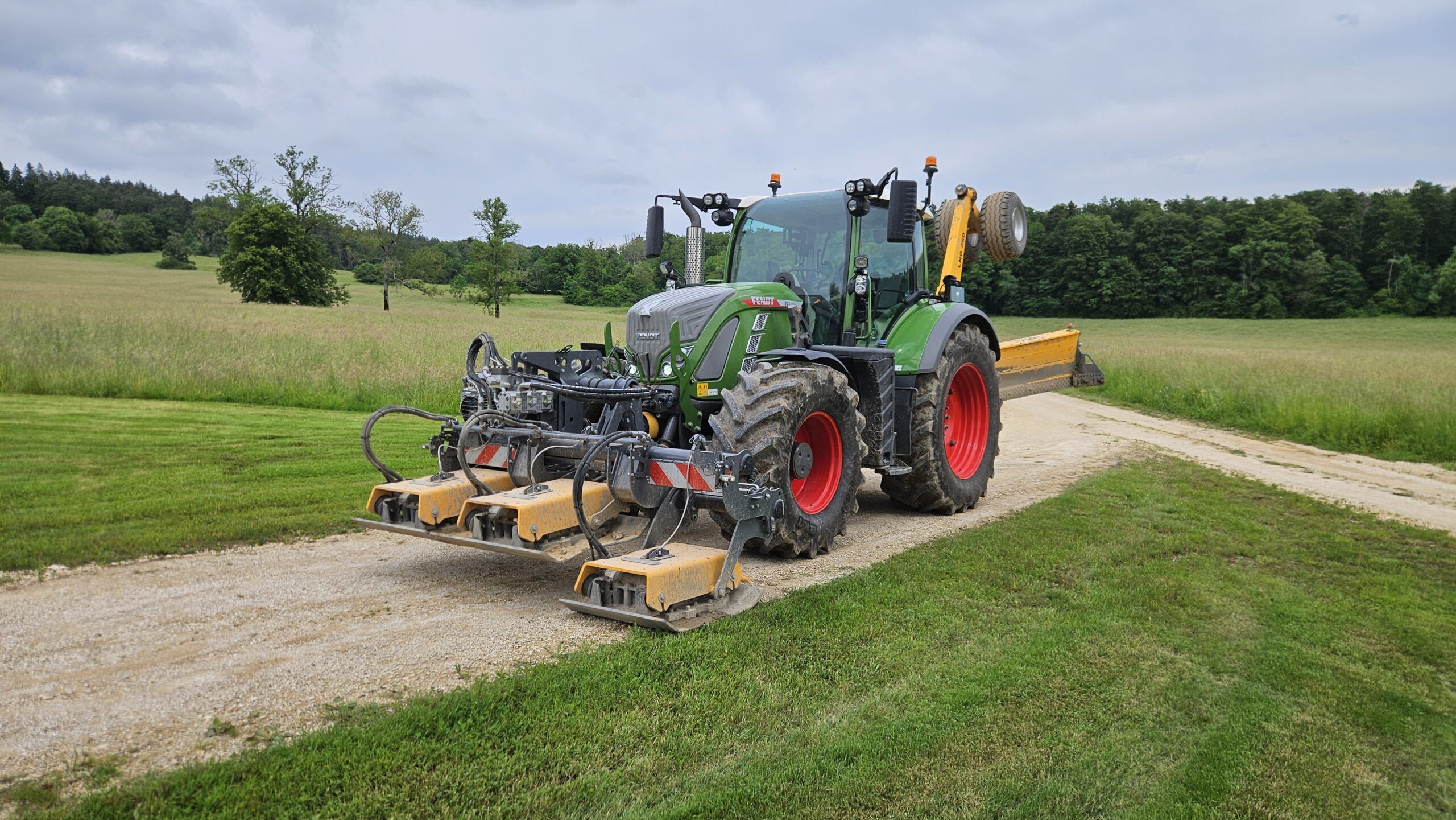

Vibrating plates can be fitted to the front or rear of a tractor, loader, hydraulic shovel, grader or compactor. As the pads are mounted independently to move freely, they adapt to the profile of the surface to be compacted. As an option, the system can be mounted on a chassis with a 500 mm offset on each side.
Benefits:
- Vertical compacting.
- Continuous adjustment of amplitude and frequency..
- High compacting capacity.
- Excellent surface compacting result.
- Closes porous surfaces.
- Efficient when soil conditions are heterogeneous: fine material moves to the surface.
- Reproduces the track profile.
The vibrating plates ensure dynamic compacting up to 50 cm depth.
|
Type
|
Data
|
|---|---|
|
Working width (mm)
|
2550
|
|
Total width (mm)
|
2550
|
|
Compacting depth (mm)
|
100 to 500
|
|
Force (kN)
|
3 x 80
|
|
Necessary engine rating (HP)
|
80
|
|
Amplitude (mm)
|
2,12
|
|
Weight (kg)
|
1950
|
|
Hitch
|
3 points - CAT 2
|
